Contour Frameset

A beautifully curvaceous, hand crafted, light-weight off-road performance frameset

Frame only from £2050.00 // Frame &  forks from £2715.00

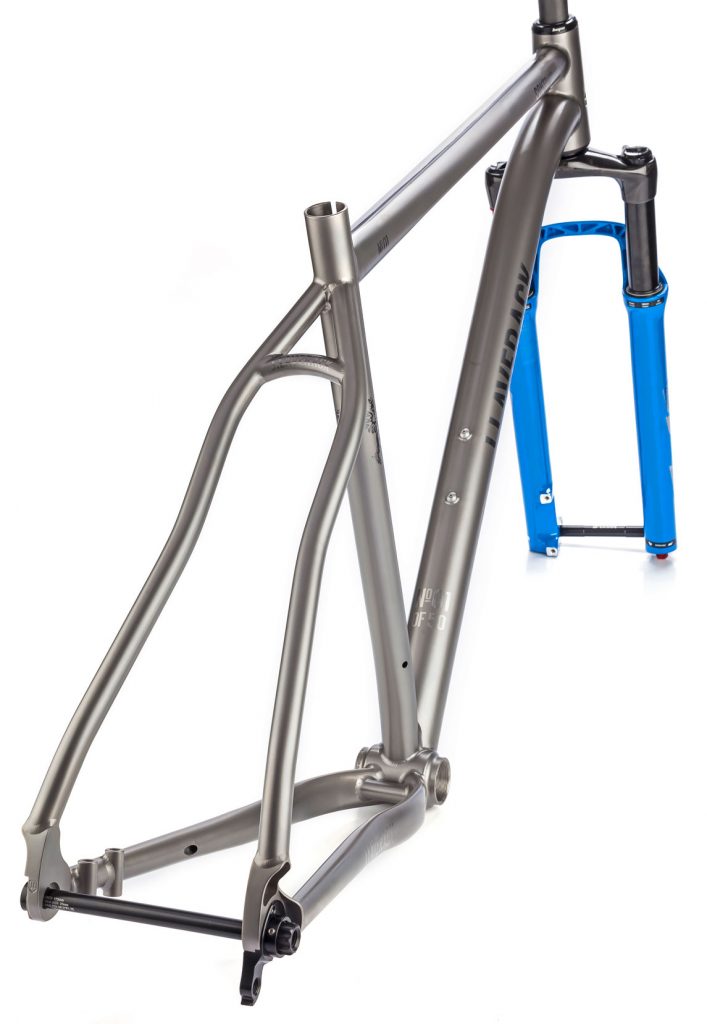

Contour 29er frameset featuring 100mm RockShox SID Ultimate Carbon Fork

The brief: To design a performance focussed hardtail mountain bike that is as elegant as it is capable. An off-road speed machine that can be raced or ridden for pure enjoyment to escape and enjoy the outdoors.
The result: A triumph of functionality and form have resulted in an exquisite and tenacious titanium hardtail that will push you to ride faster and further. A composed, durable and un-rivalled off-road machine designed for the pursuit of speed, adventure and new landscapes.

Our Inspiration
ABOUT THE
Contour
Buying a J.Laverack is more than buying a bike. Each bike is commissioned to your requirements and we employ a no compromise mantra to offer the best advice.

OUR Contour was inspired by the riding Oliver did as a youth. As a care-free young lad he would spend every moment riding with his friends exploring his local trails, tracks and quarries until the light would fade into darkness. Every chance to get out was a chance to explore and find a mini adventure. Later Oliver and David would spend every weekend riding with their local mountain bike group and its this mixed surface riding and the terrain that we have on our doorstep in Rutland that lead to the Contour, a fast cross country hardtail 29er.

The Contour has been a concept for longer than any other bike in our range and finally we are extremely proud to offer this beautifully crafted model to those who enjoy the same riding we do.
Many hands, many hours and many years of experience are employed in crafting each frame. Our ‘no compromise’ mantra means we will always recommend what we feel is best suited to you and your riding ambitions.
All frames are made to order and to suit the groupset, be that mechanical or electronic. This ensures the frame only has the holes it needs, keeping clean lines.

Design Features

Custom geometry to ensure a bike that has been made to your measurements to the millimeter.

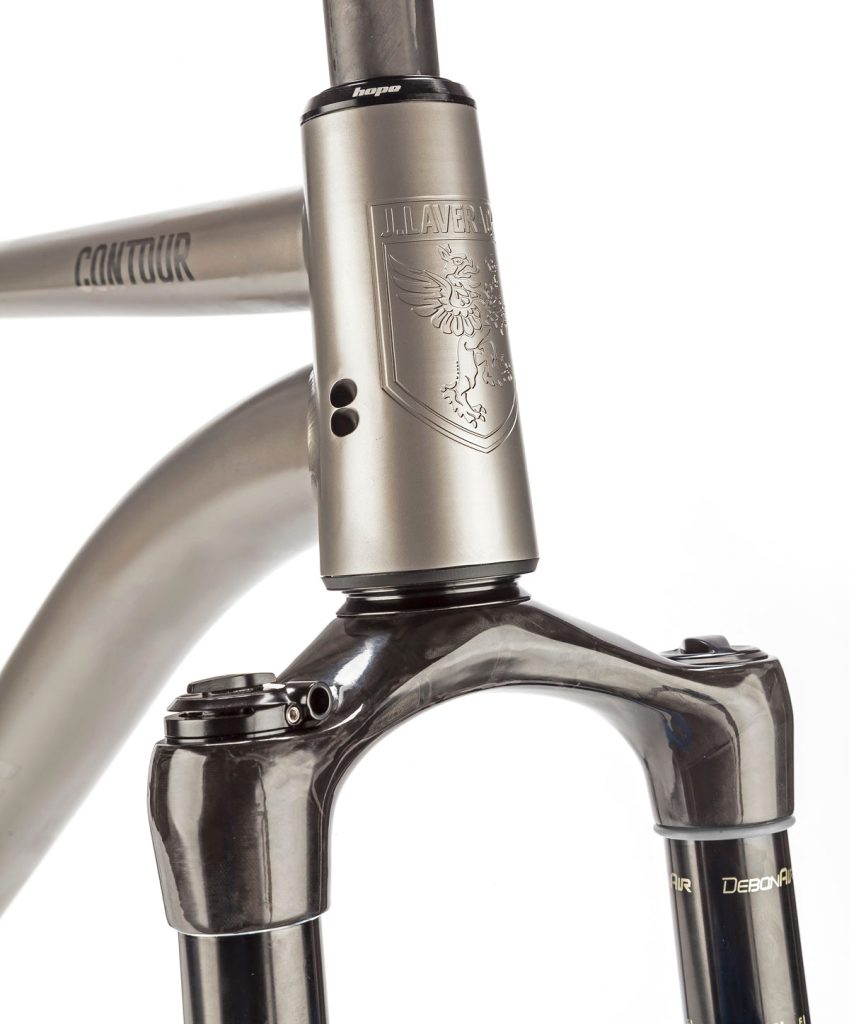

Beautifully integrated Streamline head tube and / or bottom bracket that allow all cables to be hidden and protected inside the frame.

Third bottle cage mounting bolts under the down tube to carry extra water, tools or a pump.

Choose from three styles of head badge, black, silver or engraved.

Engraved dropouts – add two or three characters or numbers such as your initials.

Choose from two finishes, hand brushed or our Pavé bead blasted finish.

Customisable bead-blasted graphics. Work with our design team to create your own.

Gear and brake cables are routed internally to protect them from the elements and ensuring smooth shifting and braking.

Design Your Contour
STANDARD FEATURES
  • Threaded BSA (English) or T47 bottom bracket, other options available on request.
  • Cable routing specific to your groupset
  • Internal brake and gear cable routing
  • Tapered head tube
  • Frame tyre clearance: 2.4″ / 62mm
  • Super durable 3Al-2.5V titanium tubing
  • 6Al-4V head tube, bottom bracket and dropouts
  • 12mm/148mm Boost rear Thru-axle
  • Timeless bead blasted graphics
  • Trail and XC ready
  • Curvaceous & elegant frame design
NO COST OPTIONS
  • The first 50 commemorative frames will be numbered
  • 3rd bottle cage mount
  • Three head badge designs
  • Handlebar width
  • Crank arm length
  • Chainset ratio
  • Stem length
  • Cassette ratio
  • Seatpost diameter 27.2mm or 31.6mm
  • Pavé stainless steel bottle cages bolts
COST OPTIONS
  • Bike fit plus £130
  • Custom geometry up to £350
  • Streamline head tube plus £175
  • Streamline bottom bracket plus £150
  • Personalised graphic plus £90
  • Pavé bead blasted frame finish plus £295
  • Bespoke Painting options from £600
  • Additional lugs for strapless frame luggage up to £195
  • Pavé titanium bottle cage bolts £5 each
  • Titanium bottle cages plus £40 each

Contour Geometry
We’re on hand to help you choose the right size frame. We have access to thousands of stack and reach figures, so by way of comparison to your current bike we can confidently recommend the correct size for you.

Where possible we recommend a test ride and/or bike fit at our showroom in Oakham, allowing us to make the best recommendations.

As a guide, we’d suggest:

XXS:    152 – 158cm    |   4′ 9″ – 5′ 2″

XS:       156 – 164cm    |   5′ 1″ – 5′ 4″

S:          162 – 170cm    |   5′ 3″ – 5′ 7″

M:         168 – 178cm    |   5′ 6″ – 5′ 10″

L:          174 – 184cm    |   5′ 8″ – 6′ 0″

XL:       180 – 188cm    |   5′ 11″ – 6′ 2″

XXL:    186 – 194cm    |   6′ 1″ – 6′ 4″

XXXL: 192 – 200cm    |   6′ 3″ – 6′ 6″

If you are unsure about which size is right for you, please don’t hesitate to get in touch.

S – Stack606.2
R – Reach395
HT – Head Tube Length95
HA – Head Angle69˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective581.6
TT - Top Tube Actual551.5
ST – Seat Tube Length460
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1089.1
FC – Front Centre Distance661.4
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length70
Standover Height811.2
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack613.2
R – Reach410
HT – Head Tube Length100
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective598.5
TT - Top Tube Actual567.4
ST – Seat Tube Length470
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1101.1
FC – Front Centre Distance673.4
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length70
Standover Height818.7
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack617.9
R – Reach420
HT – Head Tube Length105
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective609.9
TT - Top Tube Actual578.3
ST – Seat Tube Length480
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1112.8
FC – Front Centre Distance685.1
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length70
Standover Height825.7
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack622.5
R – Reach430
HT – Head Tube Length110
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective621.4
TT - Top Tube Actual589.4
ST – Seat Tube Length490
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1124.6
FC – Front Centre Distance696.8
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length80
Standover Height832.8
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack627.2
R – Reach440
HT – Head Tube Length115
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective633.6
TT - Top Tube Actual601.1
ST – Seat Tube Length500
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1136.6
FC – Front Centre Distance708.5
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length80
Standover Height840.1
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack631.9
R – Reach450
HT – Head Tube Length120
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective644.3
TT - Top Tube Actual611.9
ST – Seat Tube Length510
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1148.1
FC – Front Centre Distance720.2
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length90
Standover Height847.4
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack636.6
R – Reach460
HT – Head Tube Length125
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective655.7
TT - Top Tube Actual623.3
ST – Seat Tube Length520
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1159.8
FC – Front Centre Distance731.9
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length90
Standover Height854.4
Max Tyre Clearance62mm rear, 80mm front (SID)
S – Stack641.3
R – Reach470
HT – Head Tube Length130
HA – Head Angle69.5˚
ForkRockShox SID. 100mm travel
AC – Fork Axle to Crown506
FO – Fork Offset51
TTE - Top Tube Effective667.2
TT - Top Tube Actual634.8
ST – Seat Tube Length530
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1171.6
FC – Front Centre Distance743.6
BBD – Bottom Bracket Drop62
Rear axle spacing148
Typical stem length90
Standover Height861.4
Max Tyre Clearance62mm rear, 80mm front (SID)

All measurements in millimetres unless otherwise specified

Technical Information

Frame specification
Fork travel: 100mm
Seat post diameter: 27.2 or 31.6mm
Bottom bracket shell width: 73mm
Bottom bracket type: BSA English threaded
Bottle cage mounts: Down tube & seat tube
Internal cable routing

Tyre clearance – 29″
Frame tyre clearance: Max 62mm / 2.44in
Fork tyre clearance: Max 76mm / 3in

Thru axles: Boost
Frame thru axle:  12mm / 148mm
Fork thru axle: 15mm / 110mm

Tapered headtube
Tapered steerer: 1.125” – 1.5”
Crown race diameter: 1.5″
Headset upper: Integrated IS42
Headset lower: Integrated IS52

Brakes
Recommended rotor size rear: 160 or 180mm
Frame calliper mount type: post mount or flat mount
Front derailleur: 31.8mm, 34.9mm, band on.
Seat clamp: 31.8mm or 34.9mm

What is involved when you commission a bike?
Enjoy the experience of having a bike made to your measurements by our team of experts. Where possible we recommend a test ride and bike fit at our showroom in Rutland. Our fitter has over 7 years of bike fitting experience and understands our range and geometries like no other bike fitter. Once commissioned all frames take approximately 12 to 14 weeks to be completed.

Test ride a Contour on the shore of Rutland Water

To book a test ride or ask any questions please use the contact form below

Your Name (required)

Your Email (required)

Your Message

The Metal with Mettle!

The word that best encapsulates the essential qualities of top riders and flawless bike frames is toughness. Aside from its unique aesthetics, no other frame material is as resilient nor as tough as titanium.
Titanium offers a great balance of properties that make it a perfect material for bicycle frames.
It’s lightweight, durable and can withstand a

lifetime of use whilst remaining corrosion free.
Large tube diameters allow titanium to be stiff where needed, yet the metal is naturally very good at delivering a smoother ride, especially over rough tracks and trails, so it’s perfect for long days in the saddle.
We use 3Al-2.5V titanium for the frame tubing, double butting where possible, and 6Al-4V is

chosen for the high stress areas which need to be stiffest and most resilient including the head tube, bottom bracket, dropouts and disc brake mount.
Aside from the material and ride benefits we just love the way titanium looks. J.Laverack frames aim to forge form and function to bring an unrivalled quality of ride and style to those that want more from their frame.
