GRiT Frameset

The ultra-capable go anywhere gravel and adventure bike

Frame & forks from £2500.00 // Complete bikes from £4455

The brief: To design a technically exceptional and beautifully crafted gravel frame for epic go anywhere, ride anything adventures.
A geometry that breeds confidence on testing terrain and encourages you to explore more.
The result: A refined, unflinchingly capable and stable all terrain gravel bike for explorers that can be tailored to suit adventures great or small. A frame that provides confidence inspiring handling and aesthetic beatuty in equal measure.

About the GRiT
Buying a J.Laverack is more than buying a bike. Each bike is commissioned to your requirements and we employ a no compromise mantra to offer the best advice.

TTHE GRiT has been a long time in development,” said designer Oliver Laverack. “We have been determined throughout the design and testing process that this should be a no compromise, aesthetically beautiful gravel adventure bike that will inspire confidence no matter how gnarly the terrain. We also wanted to set our new gravel bike clearly apart from our extremely capable J.ACK, which has abundant off-road capability, but is more road and rough road focussed.”

GRAVEL ADVENTURE GEOMETRY & COCKPIT
Up front, the GRiT fork offers ample tyre and mud clearance and features a longer rake, increasing the gap between your shoes and the front tyre, which is important on slower technical terrain. Longer chainstays, combined with a meticulous bike fit, place the riders weight further back for increased traction over loose terrain. Both the longer fork rake and longer chainstays also increase the stability of the bike over rough sections at speed.

All models feature wider flared handlebars and shorter stems to take the riders weight off the front of the bike and keep handling responsive and light.
This bike can be configured in so many different ways, depending on the type and size of the adventure. Build it up with a full complement of frame luggage and tackle a trans-continental adventure, or simply run two bottles and head out on your local trails, you decide. The GRiT will take any adventure in its stride, be it big or small.
“The ride characteristics of the GRiT have surpassed even our own expectations and combined with super wide tyre clearances, that will allow for up to 50mm 650B tyres and 48mm 700C tyres, this bike is an unstoppable adventure machine,” said Oliver.
“In our eyes, titanium is the best material in the world for a gravel adventure bike; it’s the ultimate metal with mettle. The rough and tumble nature of gravel and off-road riding means riders will push their limits and need a material that will stand up to repeatedly being ridden hard”.

Design Features

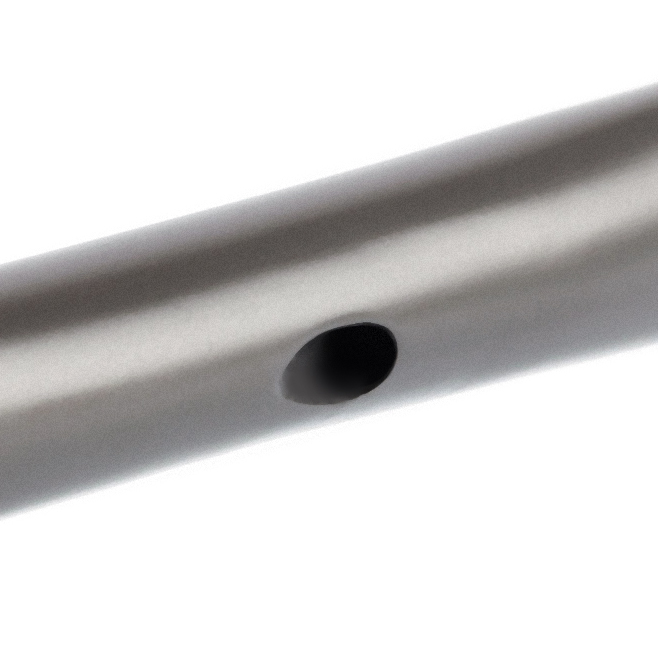

Unsightly dynamo cables are no more with our internally routed dynamo cable option.

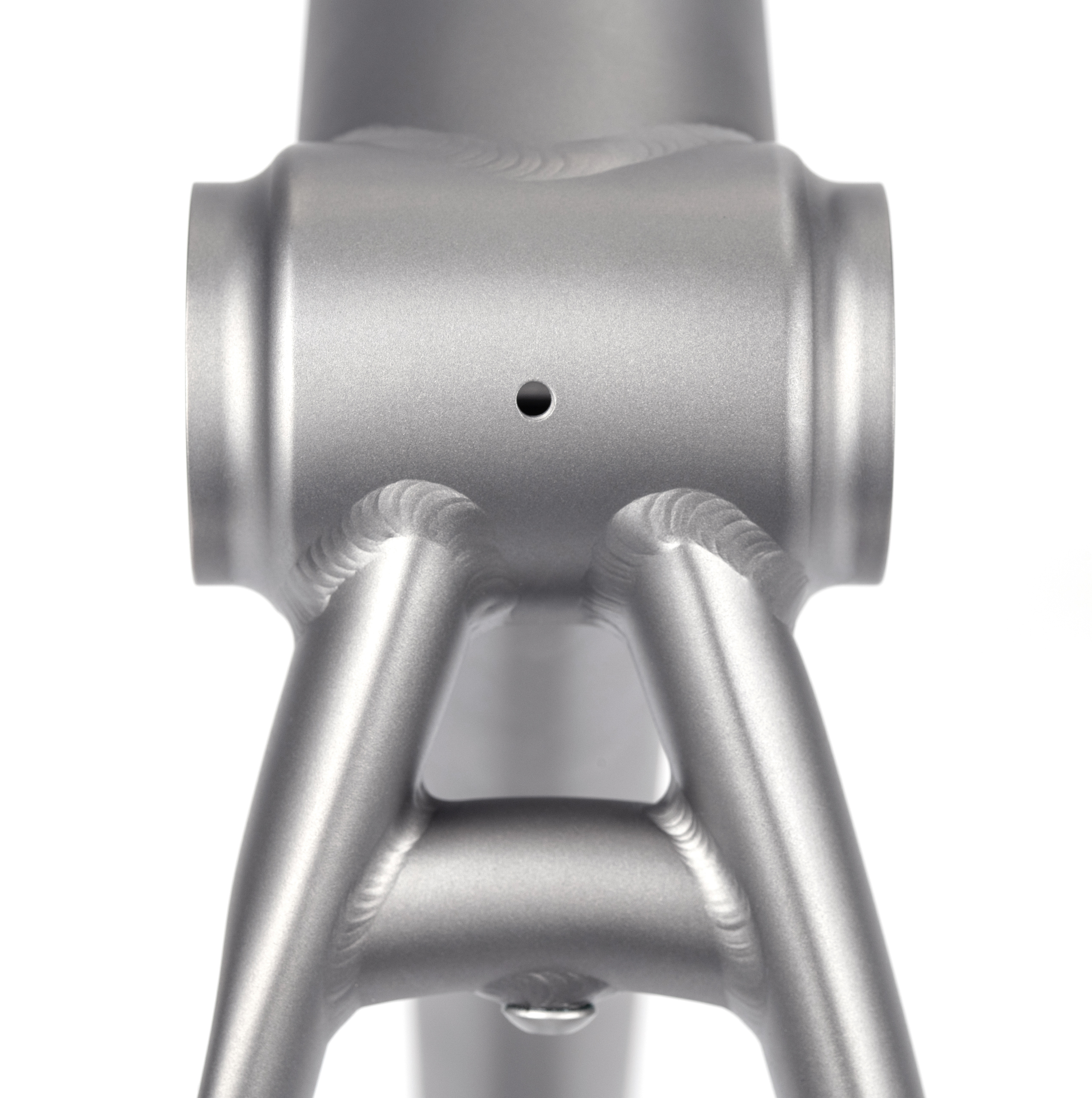

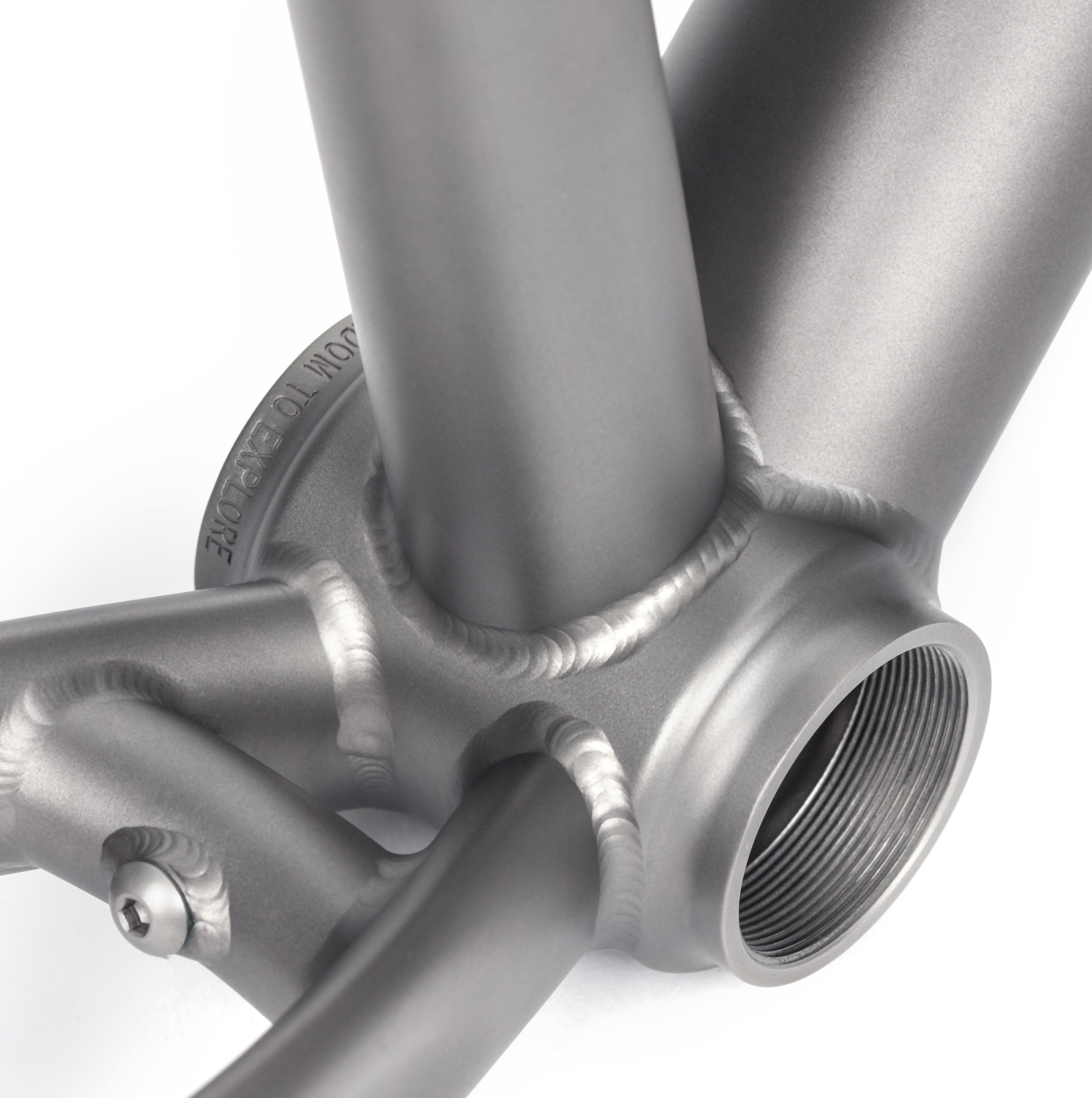

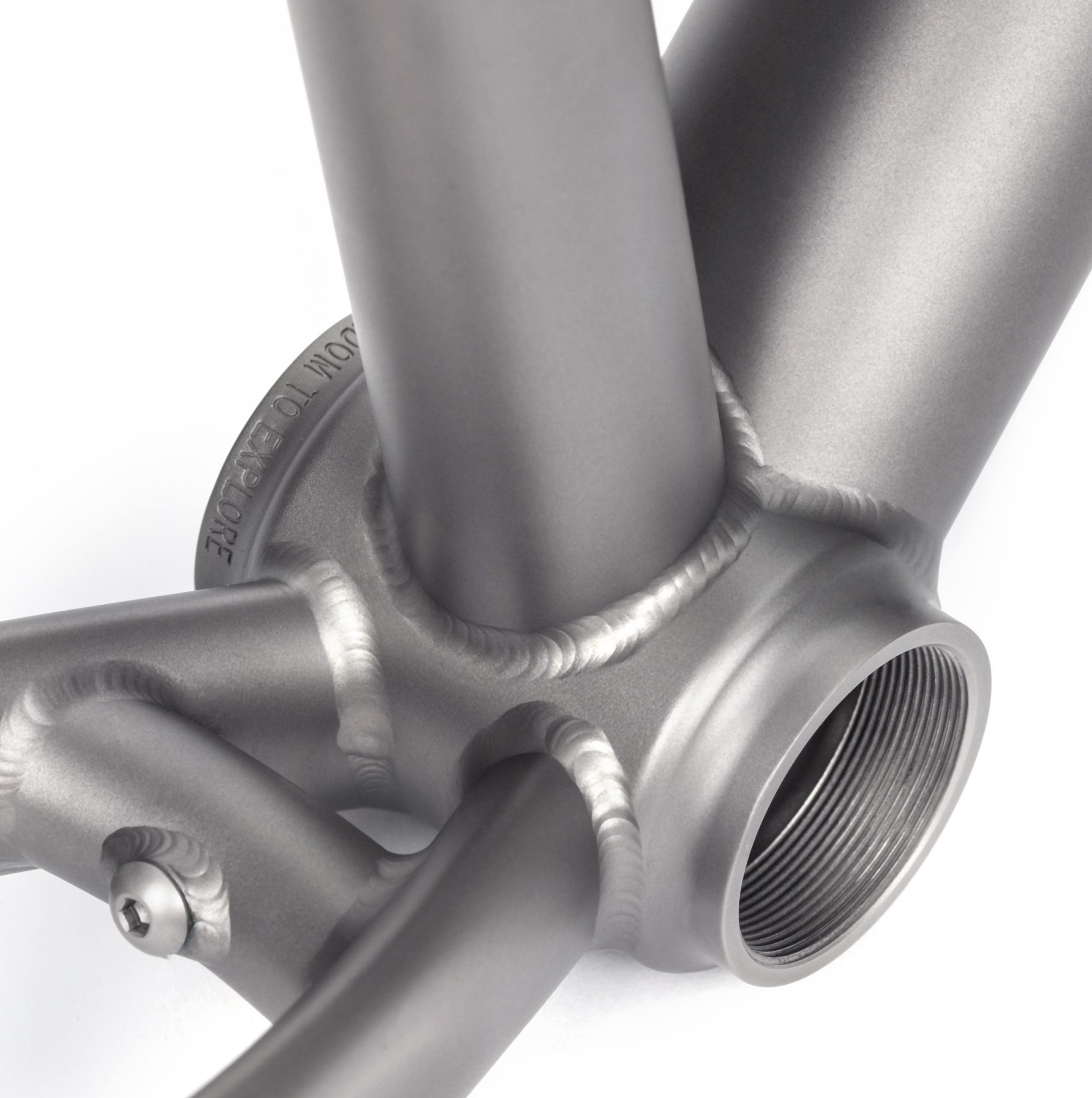

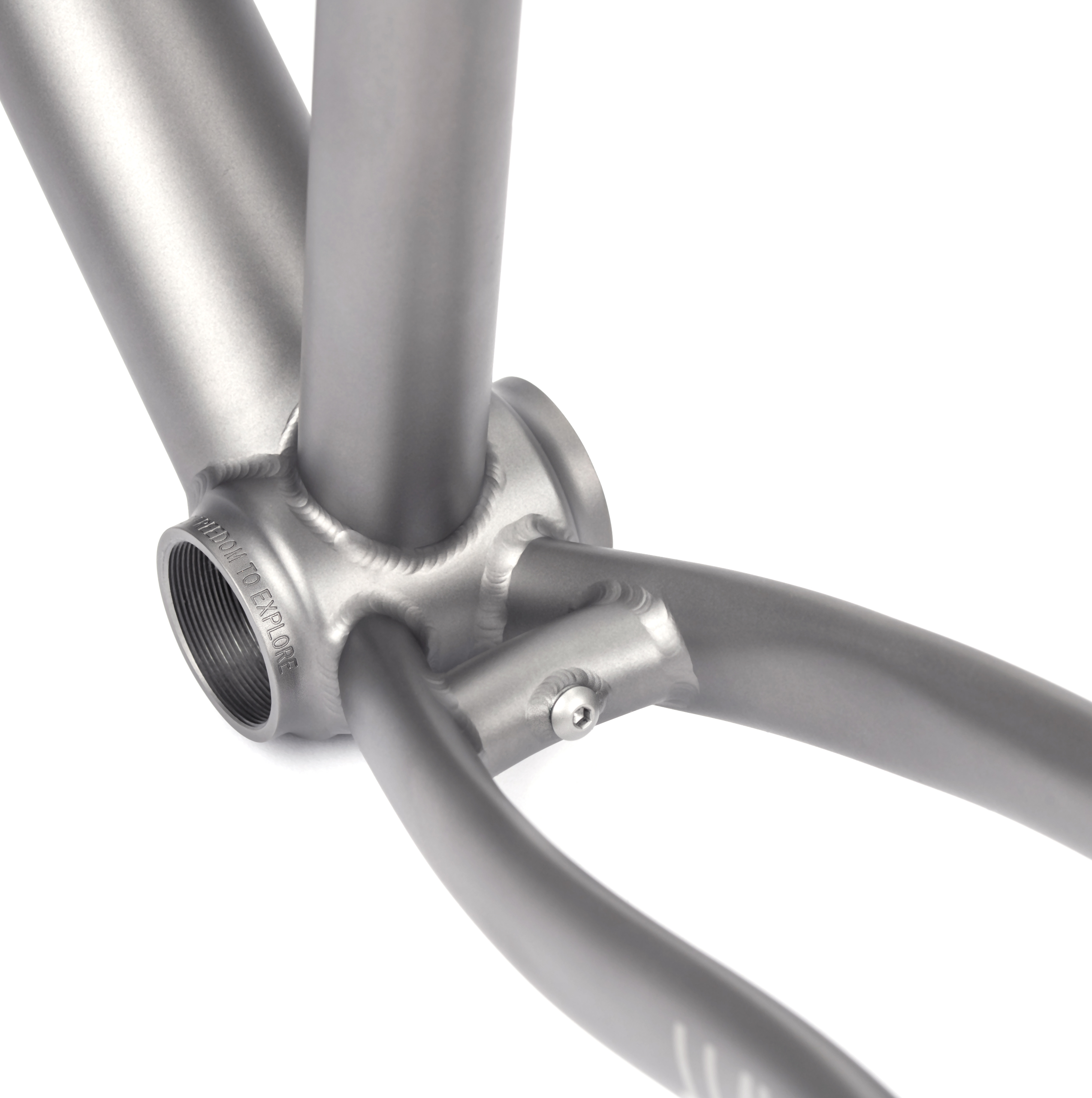

Reliability and simplicity and are king where bottom brackets are concerned and for this reason we recommend threaded bottom bracket shells.

Gear and brake cables are routed internally to protect them from the elements and ensuring smooth shifting and braking.

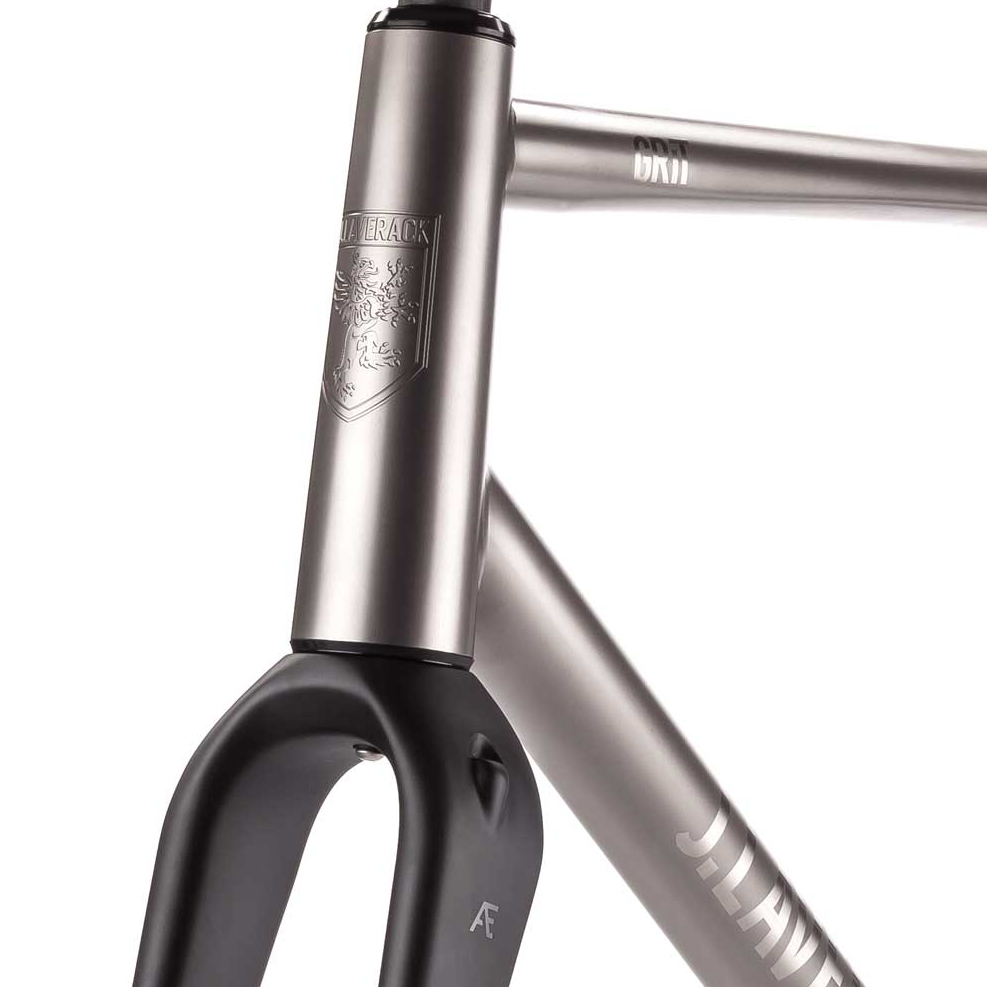

A wider head tube where the fork meets the frame increases the stiffness in that area, reducing flex and improving steering precision.

Beautifully integrated Streamline head tube and / or bottom bracket that allow all cables to be hidden and protected inside the frame.

Custom geometry to ensure a bike that has been made to your measurements to the millimeter.

Run up to 50mm tyres with 650b wheels or 48mm tyres with 700C wheels.

Add even more versatility by opting for mudguard and rack mounts and open the door to winter riding in comfort or multi-day rides with a pannier for the overnight stay.

Design Your GRiT

Just like our customers no two bikes are the same. Choose from a comprehensive list of bespoke options
STANDARD FEATURES
  • Threaded BSA (English) or T47 bottom bracket, other options available on request.
  • Cable routing specific to your groupset
  • Internal brake and gear cable routing
  • Tapered head tube
  • 50mm tyre clearance with 650b wheels
  • 48mm tyre clearance with 700C wheels
  • Compliant yet durable 3Al-2.5V double-butted titanium tubing
  • 6Al-4V head tube, bottom bracket and dropouts
  • 12mm Thru-axle as standard
  • Timeless bead blasted graphics
  • Elegant frame design
NO COST OPTIONS
  • The first 50 commemorative frames will be numbered
  • Rack and/or mudguard mounts
  • 3rd bottle cage mount
  • Three head badge designs
  • Internal dynamo cable routing
  • Handlebar width
  • Crank arm length
  • Chainset ratio
  • Stem length
  • Cassette ratio
  • Seatpost diameter 27.2mm or 31.6mm
  • Pavé stainless steel bottle cages bolts
COST OPTIONS
  • Bike fit plus £130
  • Custom geometry up to £350
  • ÆRA Gravel Adventure Dynamo Disc fork plus £65
  • Streamline head tube plus £175
  • Streamline bottom bracket plus £150
  • Personalised graphic plus £90
  • Pavé bead blasted frame finish plus £295
  • Bespoke Painting options from £600
  • Additional lugs for strapless frame luggage up to £195
  • Pavé titanium bottle cage bolts £5 each
  • Titanium bottle cages plus £40 each

GRiT Geometry
We’re on hand to help you choose the right size frame. We have access to thousands of stack and reach figures, so by way of comparison to your current bike we can confidently recommend the correct size for you.

Where possible we recommend a test ride and/or bike fit at our showroom in Oakham, allowing us to make the best recommendations.

As a guide, we’d suggest:

48cm:    152 – 158cm    |   4′ 9″ – 5′ 2″

50cm:   156 – 164cm    |   5′ 1″ – 5′ 4″

52cm:   162 – 170cm    |   5′ 3″ – 5′ 7″

54cm:   168 – 178cm    |   5′ 6″ – 5′ 10″

56cm:   174 – 184cm    |   5′ 8″ – 6′ 0″

58cm:   180 – 188cm    |   5′ 11″ – 6′ 2″

60cm:   186 – 194cm    |   6′ 1″ – 6′ 4″

62cm:   192 – 200cm    |   6′ 3″ – 6′ 6″

If you are unsure about which size is right for you, please don’t hesitate to get in touch.

S – Stack538
R – Reach355
HT – Head Tube Length115
HA – Head Angle70.5˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective519.5
TT - Top Tube Actual499.3
ST – Seat Tube Length470
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1001.5
FC – Front Centre Distance577.3
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length80
Typical handlebar width380 or 400
Typical crank length165
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack549.3
R – Reach361
HT – Head Tube Length125
HA – Head Angle71˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective529.0
TT - Top Tube Actual509.0
ST – Seat Tube Length490
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1006.7
FC – Front Centre Distance582.5
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length80
Typical handlebar width400
Typical crank length165
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack570.2
R – Reach367
HT – Head Tube Length145
HA – Head Angle71.5˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective541.3
TT - Top Tube Actual520.6
ST – Seat Tube Length510
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1014.9
FC – Front Centre Distance590.6
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length80
Typical handlebar width400 or 420
Typical crank length170
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack589.1
R – Reach373
HT – Head Tube Length165
HA – Head Angle71.5˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective553.1
TT - Top Tube Actual532.2
ST – Seat Tube Length530
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1027.3
FC – Front Centre Distance602.9
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length90
Typical handlebar width420
Typical crank length172.5
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack598.6
R – Reach379
HT – Head Tube Length175
HA – Head Angle71.5˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective562.0
TT - Top Tube Actual542.1
ST – Seat Tube Length550
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1032.7
FC – Front Centre Distance612.0
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length90
Typical handlebar width420
Typical crank length172.5
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack614.9
R – Reach385
HT – Head Tube Length190
HA – Head Angle72˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective573.0
TT - Top Tube Actual553.0
ST – Seat Tube Length570
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1042.5
FC – Front Centre Distance618.0
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length90
Typical handlebar width420 or 440
Typical crank length175
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack629.1
R – Reach391
HT – Head Tube Length205
HA – Head Angle72˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective583.4
TT - Top Tube Actual564.0
ST – Seat Tube Length590
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1053.1
FC – Front Centre Distance628.5
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length100
Typical handlebar width440
Typical crank length175
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional
S – Stack640.7
R – Reach397
HT – Head Tube Length215
HA – Head Angle72.5˚
AC – Fork Axle to Crown395
FO – Fork Offset50
TTE - Top Tube Effective592.9
TT - Top Tube Actual574.3
ST – Seat Tube Length610
SA – Seat Tube Angle73˚
CS – Chain Stay Length435
WB – Wheelbase1057.3
FC – Front Centre Distance632.6
BBD – Bottom Bracket Drop73
Rear axle spacing142
Typical stem length100
Typical handlebar width440
Typical crank length177.5
Maximum Tyre Clearance (700C)48mm
Maximum Tyre Clearance (650b)50mm
Maximum Tyre Clearance (700C) with mudguards45mm
Maximum Tyre Clearance (650b) with mudguards48mm
Mudguard MountsOptional
Rack MountsOptional
3rd Bottle Cage MountsOptional

All measurements in millimetres unless otherwise specified

Technical Information

Wheels:
Rear axle:  142mm (12mm thru-axle)
Front axle: 100mm

Tyres:
Max width: 48mm with 700C wheels
Max width: 50mm with 650b wheels

Whilst we believe the above information to be accurate there may be compatibility issues with some untested combinations of rims and tyres.

Bottom Bracket: Threaded English BSA or T47
– 68mm wide shell

Seat post: 27.2mm or 31.6mm

Seat clamp: 31.8mm or 34.9mm

Front derailleur: 31.8mm or 34.9mm, band on.

Brakes:
Recommended rotor size rear: 160mm
Rear disc brake caliper mount: Flat mount

Tapered headtube/headset:
1.125” – 1.5”
Headset bearings – integrated
Top integrated bearing seat diameter – 42mm
Bottom integrated bearing seat diameter – 52mm

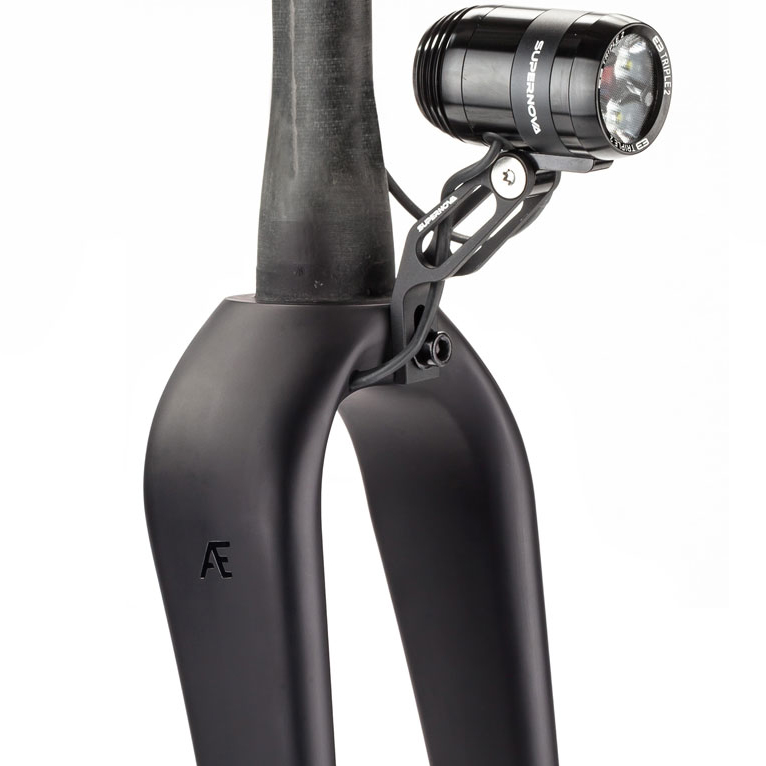

ÆRA Gravel Adventure Disc Fork

  • Also available with internal dynamo cable routing.
  • Internal cable routing.
  • Mudguard mounts
  • Fork suitable for up to 700C x 48mm tyres & 650b x 52mm tyres.
  • Designed for Flat mount disc brakes. Will also work with post mount disc brakes.
  • 12mm E-Thru Axle Dropouts – 100mm spacing
  • ÆRA Thru Axle Lever included
  • 140 or 160mm rotor
  • 1.125” – 1.5” Tapered carbon steerer S.H.I.S. – Clamp 28.6 – Race 39.8
  • 3 year warranty
